KJT-HWCJ-50M Infrared Photoelectric Sensor
- Модель:KJT-HWCJ-50M
- Measuring distance：50M
- Measurement frequency：500HZ
- Power voltage：9-30V DC
- Экспорт:NPN /PNP
Product Overview
The KJT-HWCJ-50M Infrared Photoelectric Switch is a high-efficiency sensor based on Time of Flight (TOF) technology. It meets the requirements of various application scenarios and realizes object detection by measuring the reflection time of infrared light.
Core Features
- Based on Direct Time of Flight (dTOF) algorithm
- Maximum measuring range: 50m
- Measuring blind zone: 5cm
- Measuring frequency: 500Hz
- Resolution: 1mm
- Operating temperature: -20℃ ~ +55℃
- Power supply voltage: 9-30V DC
- Compact size: 48×32×21mm
- Weight: 22.5g (excluding cables)
- Ambient light immunity: 100Klux/10m
Parameter | Specification |
Модель | KJT-HWCJ-50M |
Measuring Range | 0.05～50m (90% reflectivity); 0.05～20m (10% reflectivity) |
Ranging Frequency | 500 Гц |
Absolute Accuracy | N/A |
Repeatability | 1 мм |
Ambient Light Immunity | 100K Lux |
Measuring Laser Wavelength | 905nm (Invisible Light) |
Measuring Laser Class | Class 3R |
Measuring Laser Field of View | 8mm diameter @ 2m |
Indicator Laser Wavelength | N/A |
Indicator Laser Class | N/A |
Input Voltage | 9-30V DC |
Peak Current | 80mA |
Average Current | 18mA |
Average Power Consumption | 0.43W |
Output Interface | NPN, PNP |
Класс защиты | МП65 |

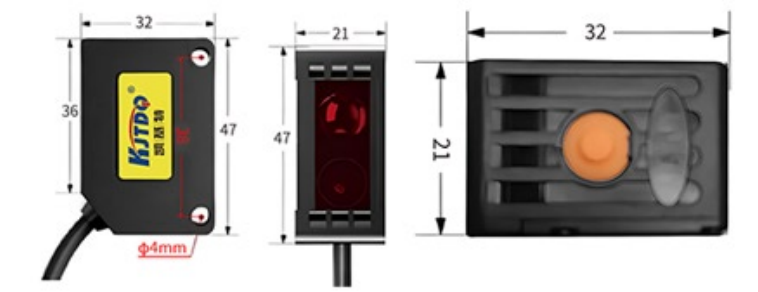

Dimensions (L×W×H) | 48×32×21mm |
Вес | 22.5g (excluding cables) |
Рабочая температура | -20℃~+55℃ |
Cable Specification | 0.2mm 4-core PVC cable, 2m in length |
Customization Range | Cable length customization and output protocol customization supported |
Pin | Definition/Wire Color | User Interface |
1 | 9-30V (Brown) | Power Positive (+) |
2 | GND (Blue) | Power Negative (-) |
3 | NPN (Black) | NPN Output |
4 | PNP (White) | PNP Output |
