KJT1102/90 Series Warning Light
- Модель:KJT1102/90
- Current：Red: 29mA; Buzzer: 18mA
- Flashing Frequency：63-65 times/min
- Buzzer Volume：>85dB
- Protection Class：IP53
Особенности продукции
Built-in buzzer with a volume of over 85dB.
Imported LED color chips, featuring high brightness, stable performance, and long service life.
Customer logos can be printed on the lampshade.
Parameter | Specification |
Current | Red: 29mA; Buzzer: 18mA |
Flashing Frequency | 63-65 times/min |
Buzzer Volume | >85dB |
Класс защиты | IP53 |
Рабочая температура | -20~45℃ (Note: Corrected from "working humidity" as the unit indicates temperature) |
Lamp Lifespan | 50,000h |
Lamp Body Color | Gray, White |
Mounting Method | Screw Fixing |
Материалы | Lampshade: PC; Base: Nylon with Glass Fiber |
Parameter | Specification |

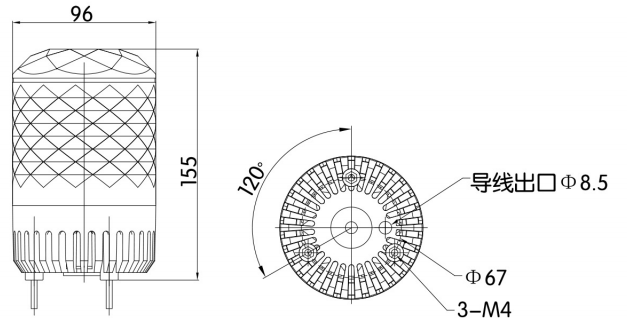

Head Diameter | Φ70mm, Φ90mm |
Head Type | None: No Additional Head |
Function | T: Steady On; T: Steady On with Buzzer; W: Flashing; WJ: Flashing with Buzzer; RW: Red Flashing; RWJ: Red Flashing with Buzzer |
LED Voltage | 12V AC/DC, 24V AC/DC, 100-265V AC; Other voltage levels customizable |
RYG Three-Color Integrated | R: Red; Y: Yellow; G: Green; B: Blue; W: White |
Mounting Type | E: Screw Mount; D: Magnetic Mount |
Housing Color | Gray (default model); Other colors customizable |
Тип терминала | L: Polarity-Free; C: Contact Type |
